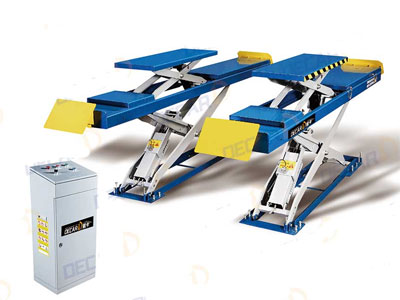

DK-35 Wheel Alignment Scissor Lift

Product Infomation

This model features of integral base, easy to install and less maintenance. It's the best partner with 3d wheel aligner.

Details

Technical Specification

Model	DK-35
Capacity(kg)	3500kg
Motor supply(v)	380V/220V
Original height of platform(mm)	330mm
Host lift height(mm)	1850mm
Host rise/drop time(s)	45/38
Gas supply	6-8kg/cm²
Client capacity(kg)	3500kg
Motor power(kw)	2.2kw
Hydraulic oil	18L 46#wear-resistant hydraulic oil
Client lift height(mm)	450mm
Client rise/drop time(s)	15/14

Main Feature

1. Polymer oily wear slider

2. Tubing explosion-proof device

3. 2mm cold-tolled plate slide, less resistance,and more smooth the rise and

fall,replaceable and easy maintenance for late.

4. Integral base, easy to install, and horizontal.

5. CE Standard 3 insurance gear design

6. Adopts Q345 international solid steel, avoid of deformation permanently.

7. Adopts Q345 international 25mm solid steel, avoid of deformation permanently.

8. 4 meters long 6mm thickness 50 × 120mm strengthen the heavy square tube.

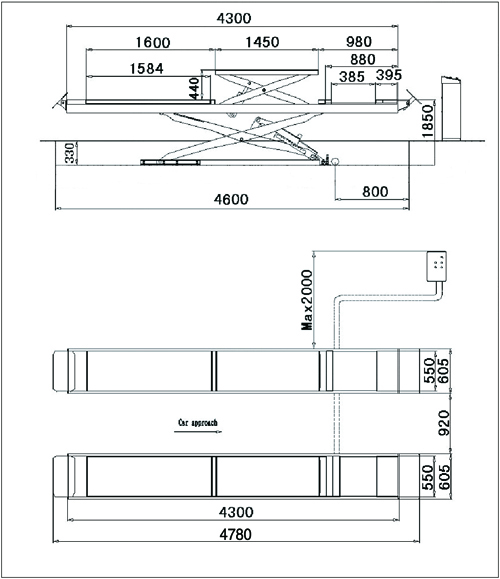

Overall Drawing
