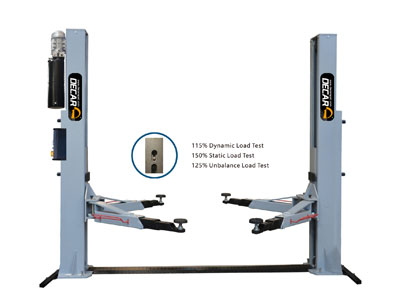

TL-250E Electric release car lift

Product Infomation
Electric auto lift with ABS control box.Good choice for the automotive repair, maintenance, and adapted to lifting of medium and small car with the total weight of not exceeding 3.5T or 4T.
  • Model:TL-250E
  • Specification: Electric Auto Lift
  • Packing Size:
  • Gross Weight:
  • Color:Blue,red,grey
Details

Technical Specification



Model

TL-250E

Capacity

5000kg

A. Max. lifting

1900mm

B.Overall width

2836mm

C.Overall length

3760mm

D.Drive through clearance

2530mm

E.Supporting arm length front min.

886mm

F.Supporting arm length front max.

1800mm

G.Supporting arm length rear min.

110mm

H.Supporting arm length rear max.

155mm

I.Clear size column spacing

2840mm

J.Switch off level

2700mm

Motor performance

3.0kw

Electrical connection

380v-415v

3 phases

50-60Hz

Electrical connection

215v-240v

1 phases

50-60Hz

Lifting time

60sec

Lowering time

20-60sec



Drawing
