Technical Specification



Specification	Item	Accuracy	Range
Front wheel	toe	±1′	±2.6°
	camber	±1′	±10°
	caster	±3′	±20°
	steering axle inclination	±3′	±20°
	set back	±1′	±10°
Rear wheel	toe	±1′	±2.6°
	camber	±1′	±10°
	thrust -angle	±1′	±10°





Main Feature



1.   8 beam infrared CCD image recognition and measurement technology has strong ability of  self adapting to ambient light,

      360° measuring the  chassis with high precision, has the widest range of adaptability.

2.   New generation ‘Zigbee’ wireless communication technology for replacing outdated Bluetooth. With stronger networking

      capacity, greater reliability, lower energy-consumption and faster date transmission over longer distance.

3.   Mutual control between sensor and computer, avoiding operator to run back and forth between sensor and computer.

4.   The function of measurement and alignment still available when power fails.

5.   Windows Xp and Windows 7 operating system, LCD display.

6.   With multiple language voice guidance, it is easy to t learn to how to operate.

7.   3D animation navigation and training video

8.   Data freezing program (JACK-HOLD) for alignment adjustment and auto parts replacement on lift, without worrying about

       fluctuation and change of measured data.

9.   Being able to measure super low chassis and small tires, it extends the measuring scope.

10. Lift runaway calibration and compensation, guaranteeing accurate alignment even on lift runaway out of level.

11. When aligning front tires, it is not necessary to connect the sensor of rear tire.

12. 180°offset compensation, bringing more accuracy.

13. The international authorative vehicle database, authorized by British Auto Data, covers more than 20000 types of small cars.

       The database will be updated online twice each year.

14. The system has the function of self diagnosis, repair and correction, including sensor unified correction and individual

       correction.

15. Customer’s vehicle alignment plan and management record the alignment state and optimize the alignment steps and key

       points.

16. The operation status recorder (Black Box), recording and reviewing the alignment history, assures the proper use and quick

       problem diagnosis.

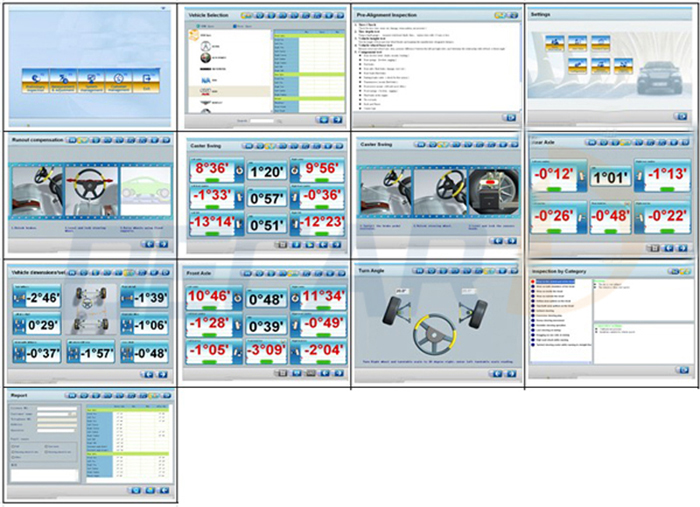

Program

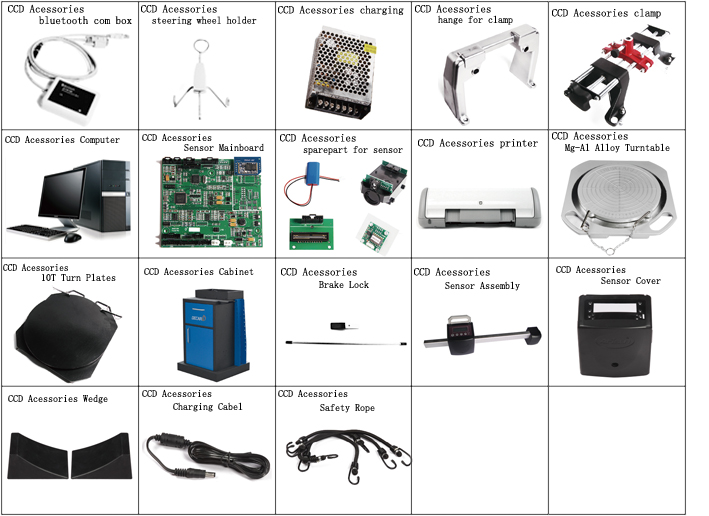

Accessories
