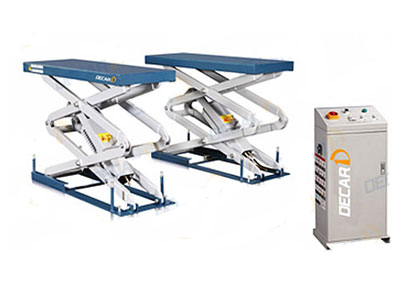

DK-30S/DK-35S Grounding-Hiding Type Scissor Lift
- Model:DK-30S/DK-35S
- Specification:Grounding-Hiding Type Scissor Lift
- Packing Size:
- Gross Weight:
- Color:Blue, red,grey
Technical Specification
|
Model |
DK-30S |
DK-35S |
|
Capacity |
3000kg |
3500kg |
|
Max. height |
2130mm |
2130mm |
|
Min. height |
330mm |
330mm |
|
Pump station power |
2.2KW,50Hz |
2.2KW,50Hz |
|
Power supply |
220V/380V |
220V/380V |
|
Gas supply |
6-8kg/cm3 |
6-8kg/cm3 |
|
Lifting time |
50s |
55s |
|
Oil pressure |
17-19MPa |
18-20MPa |
Main Feature
1.Can pull, max: 1750mm
2.Filling oil
3.Up limit switch
4.Pneumatic lock
5.Mold tooling technology, average tooth spacing error of 0.1mm.
6.Integral base, easy to install, and horizontal adjustment capability.

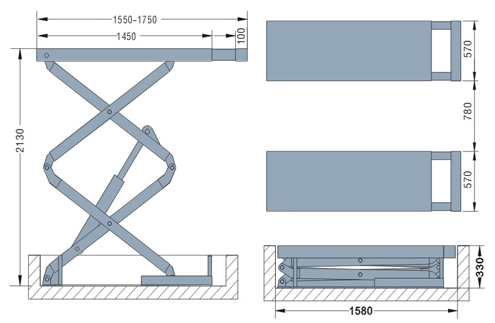

Drawing
