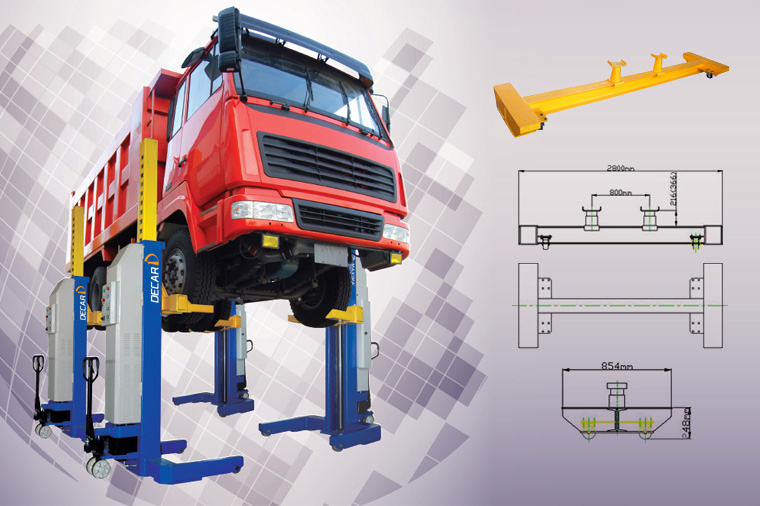

DK-W4030 Heavy Duty Column Lift

Product Infomation
Heavy duty column lift, wireless type
  • Model:DK-W4030
  • Specification:Heavy Duty Column Lift
  • Packing Size:
  • Gross Weight:
  • Color:Blue, red,grey
Details

Technical Specification

Model

DK-W4030

Lifting Capacity

7500kg per Column

Max. lifting Height

1700mm

Time of Full Rise

150 sec

Voltage

24V DC

Motor Power

2.2Kw per Column

Column Dimension:

1300(L)*1100(W)*2300(H) mm

Fork Length

380mm

Fork Width

280~580mm

Weight

680Kgs per Column

Max. Hydraulic Pressure

20Mpa

Battery Capacity

20 up & downs (Full charge)

Power Supply

110V/220V



Main Feature


   Battery & charger
      Save time for plug-in/off
      Operate the lifts anytime & anywhere
      No tripping hazard to operators
   LCD screen display
      Real-time lifting height
      Continuously monitored battery condition
      Mode type
      Multi languages option
      Troubleshooting for any trouble
  ■ Safety
      Automatic stop when highest point is reached
      Throttle valve & mechanical lock
      Automatic stop when either column has 50 mm height difference
  ■ Advanced synchronization system
      The set can rise up& down smoothly even if the load is unevenly loaded to each column
  ■ Each column has the operation & emergency buttons for easy access
  ■ IP 54 water-proof
